• Electric drive extended range, (149hp [111 kW] 294 lb-ft of torque [398 N-m])

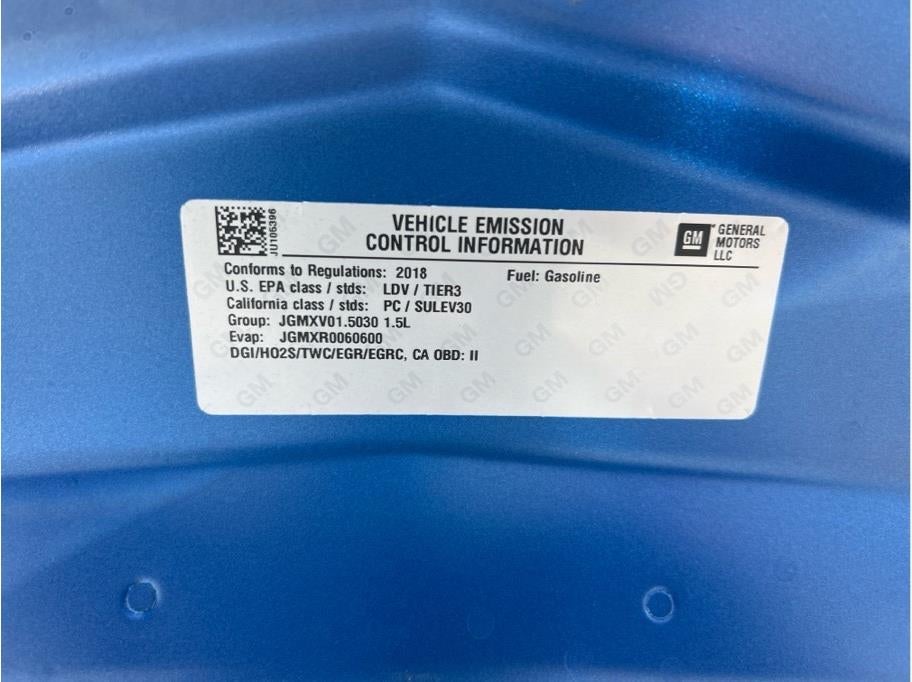

• Emissions, Federal Tier 3
• E10 Fuel capable
• Axle, 2.64 final drive ratio
• Front wheel drive
• Battery, 18.4 kWh, Propulsion, Lithium-ion, Rechargeable Energy Storage System includes liquid thermal management system with active control
• Charge cord, 120-volt, portable
• Battery, 12-volt with Rundown Protection
• Suspension, front, MacPherson strut
• Suspension, rear semi-independent, compound crank
• Steering, Electric Power Steering (EPS) assist, variable for low to high speed maneuvers
• Brakes, 4-wheel anti-lock disc with electro-hydraulic power
• Brake, parking, electric
• Regen on Demand, steering wheel paddle-enabled, regenerative braking

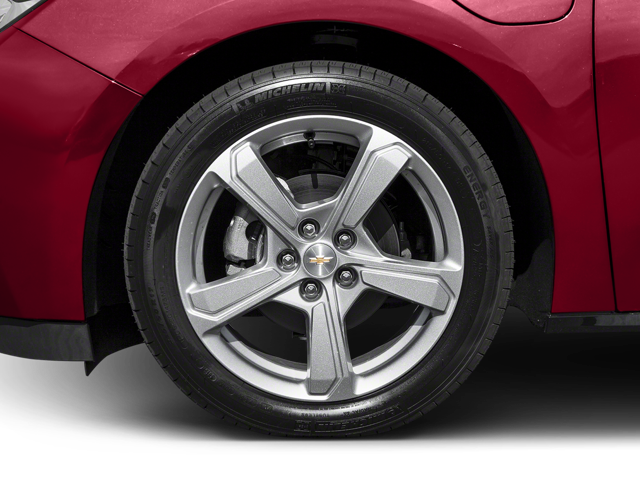

• Wheels, 17" x 7" (43.2 cm x 17.8 cm) Split 5-spoke aluminum, Ultra-bright machined finish with painted pockets
• Tires, 215/50R17 all-season, blackwall, low-rolling resistance
• Tire inflation kit
• Recovery hook, front

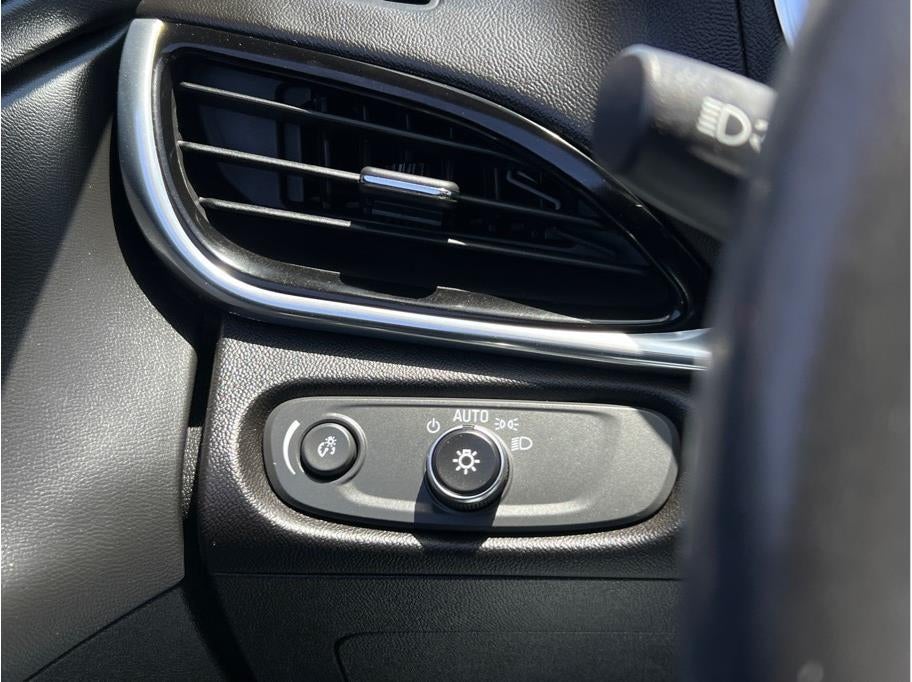

• Headlamps, LED low-beam, halogen reflector high-beam, automatic exterior lamp control
• Lamp, LED center high-mounted stop/brake
• Tail lamps, LED illumination
• Mirrors, heated, outside power-adjustable, body-color, manual-folding
• Glass, solar absorbing
• Wipers, front intermittent, variable with washers

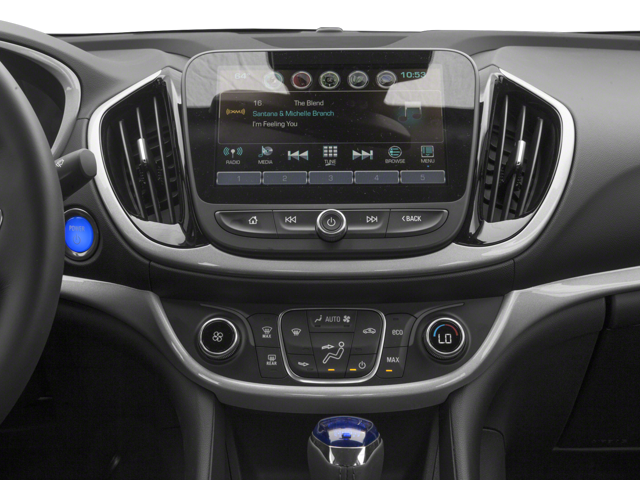

• Audio System, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; featuring Android Auto and Apple CarPlay capability for compatible phone

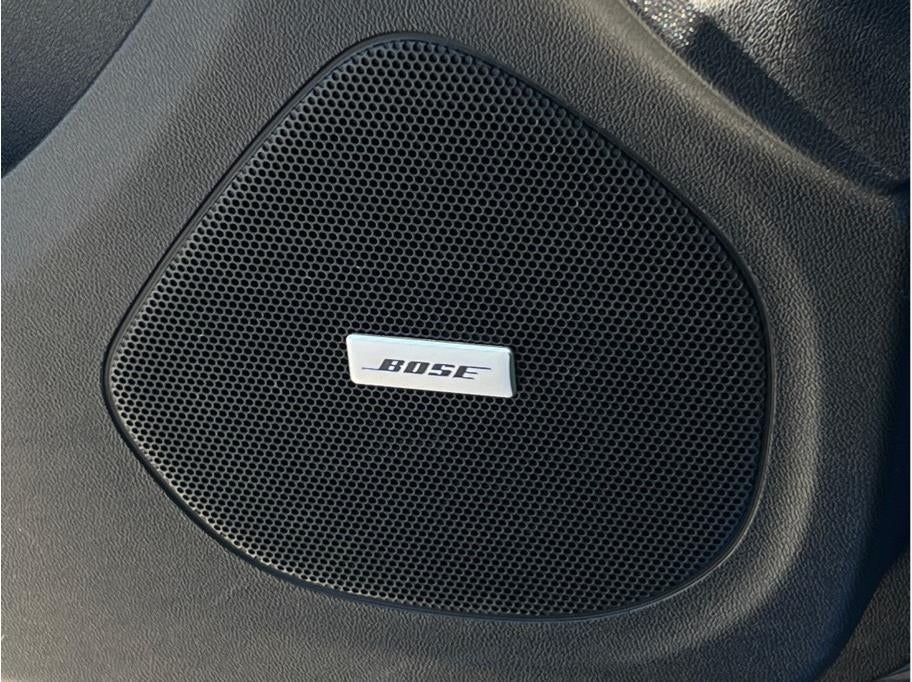

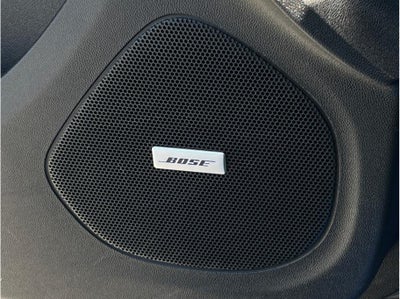

• Audio system feature, Bose premium speakers w/8-speakers, including sub-woofer
• Audio system feature, auxiliary input jack, located in front storage bin
• Audio interface, USB port, includes 2 located in front storage bin
• SiriusXM Satellite Radio SiriusXM Satellite Radio is standard on nearly all 2018 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first); EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
• Off-board connectivity via internet
• Antenna, roof-mounted, shark-fin type
• Wireless Charging for devices

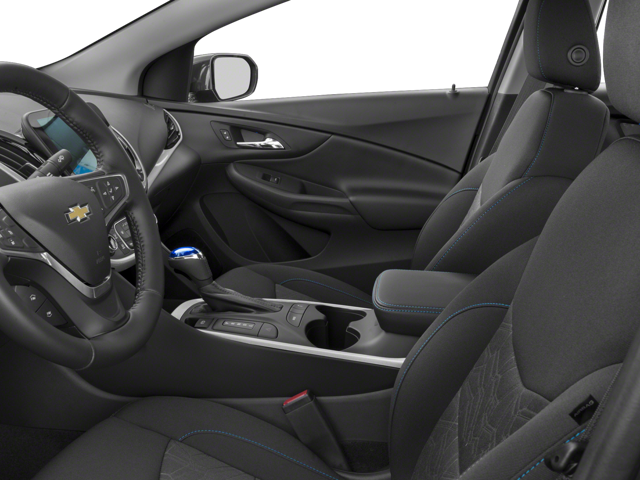

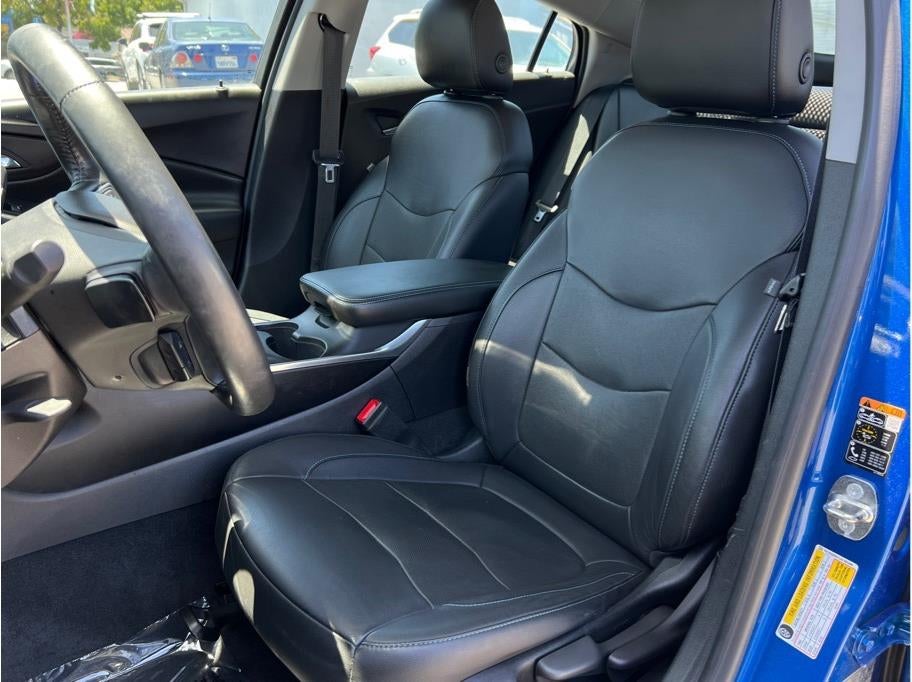

• Seats, front bucket with reclining seatbacks and adjustable head restraints
• Seats, leather-appointed

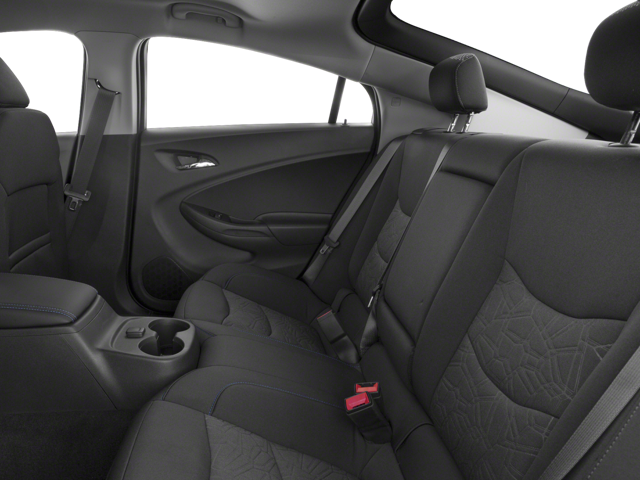

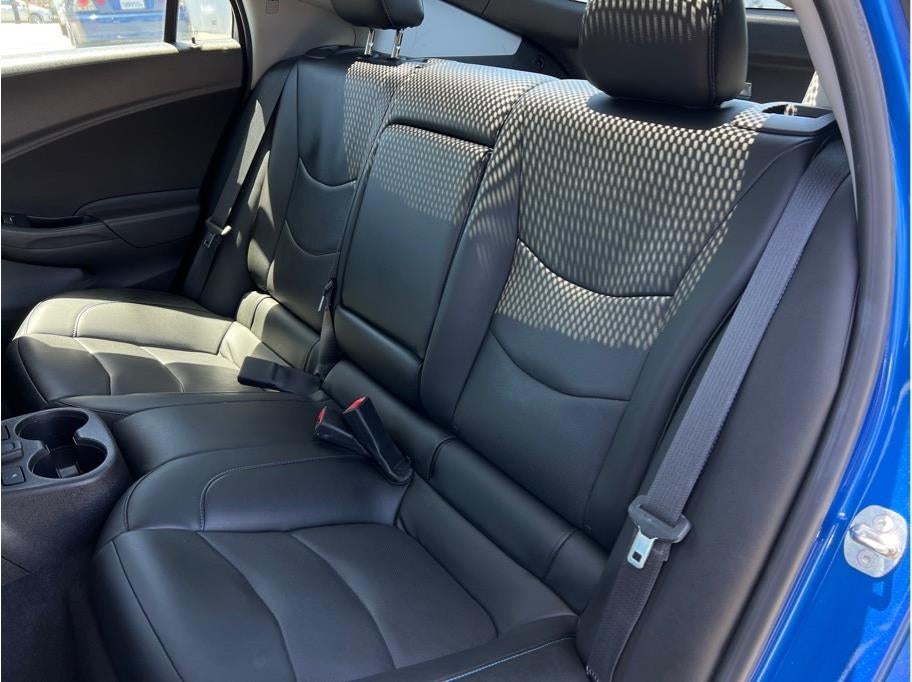

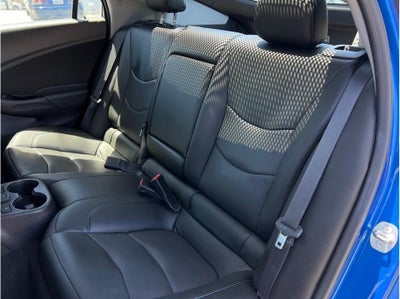

• Seat, rear 60/40 split-folding
• Seats, heated driver and front passenger includes AUTO heated seats (selectable automatic activation)
• Seats, heated, rear, outboard positions
• Seat adjuster, driver 6-way manual, fore/aft, up/down with recline
• Seat adjuster, front passenger 6-way manual, fore/aft, up/down with recline
• Head restraints, 2-way adjustable (up/down), front
• Head restraints, 2-way adjustable (up/down), rear, outboard seats

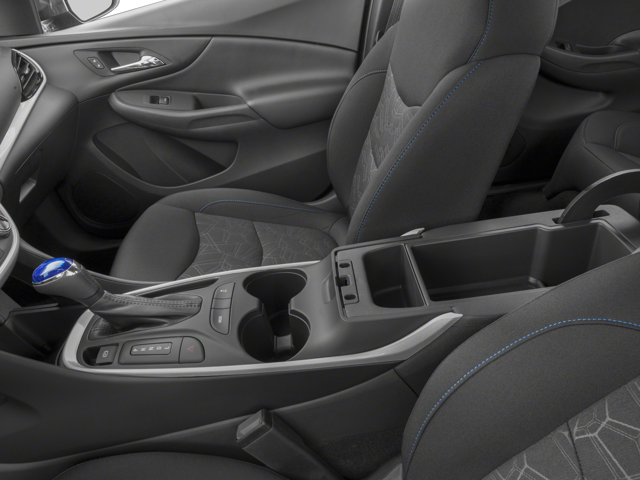

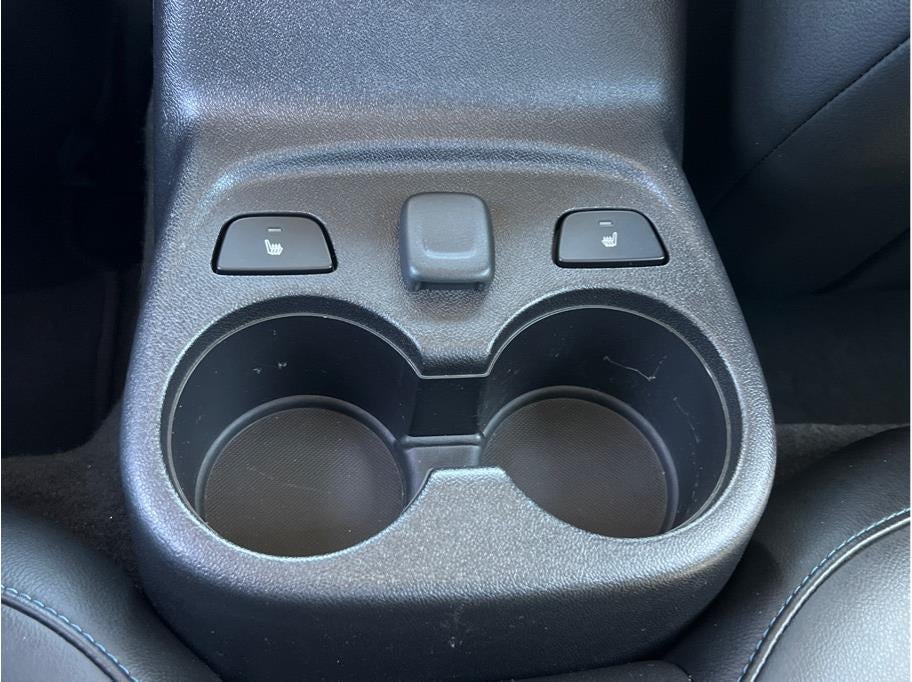

• Console, center, covered storage bin with front and rear dual cup holders and rear 12-volt power outlet
• Storage, open, located forward of shifter
• Power outlets, 2 auxiliary, 12-volt 1 in front storage bin and 1 in rear of center console
• Floor mats, carpeted front and rear
• Steering column, tilt and telescopic

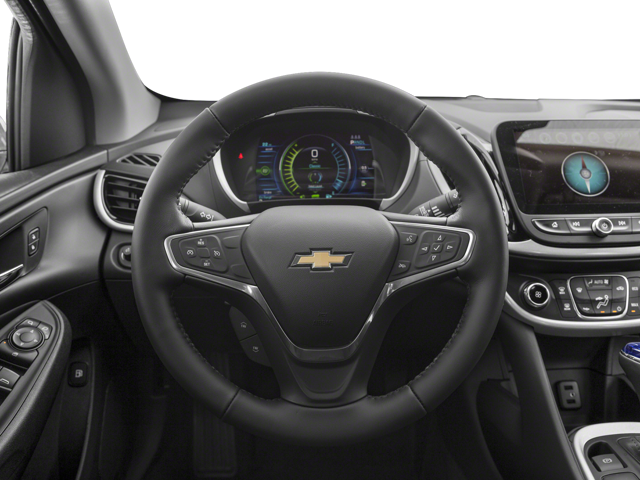

• Steering wheel, leather-wrapped

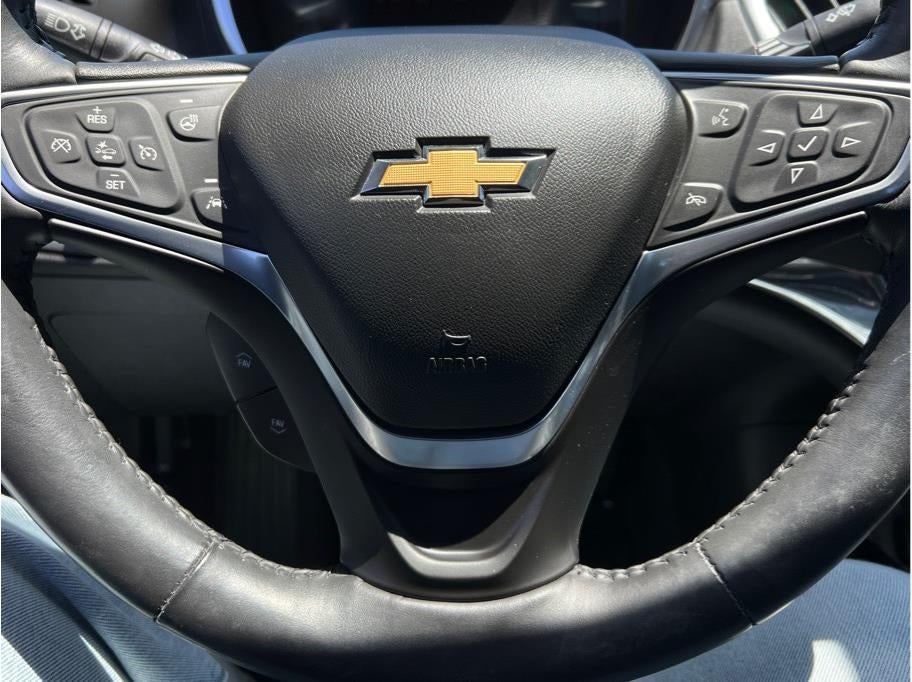

• Steering wheel controls, audio, voice recognition, cruise and Driver Information Center
• Steering wheel, heated includes AUTO heated steering wheel (selectable automatic activation)

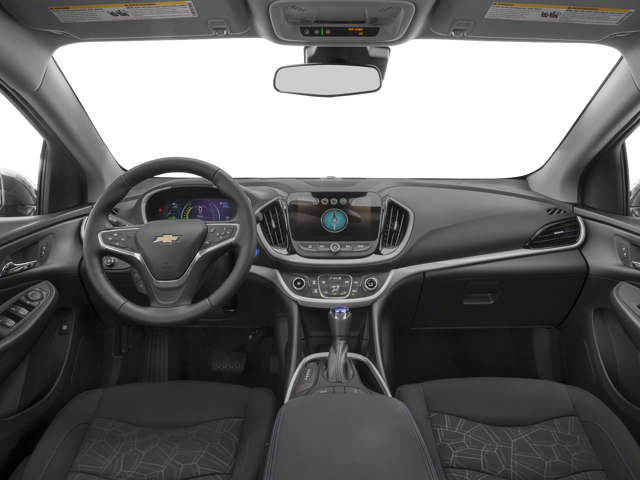

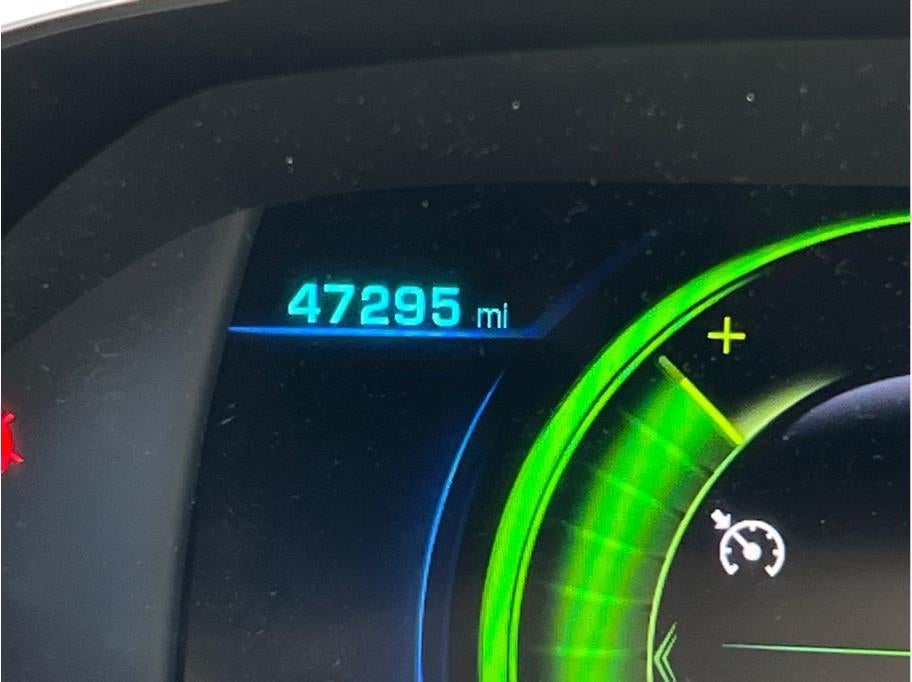

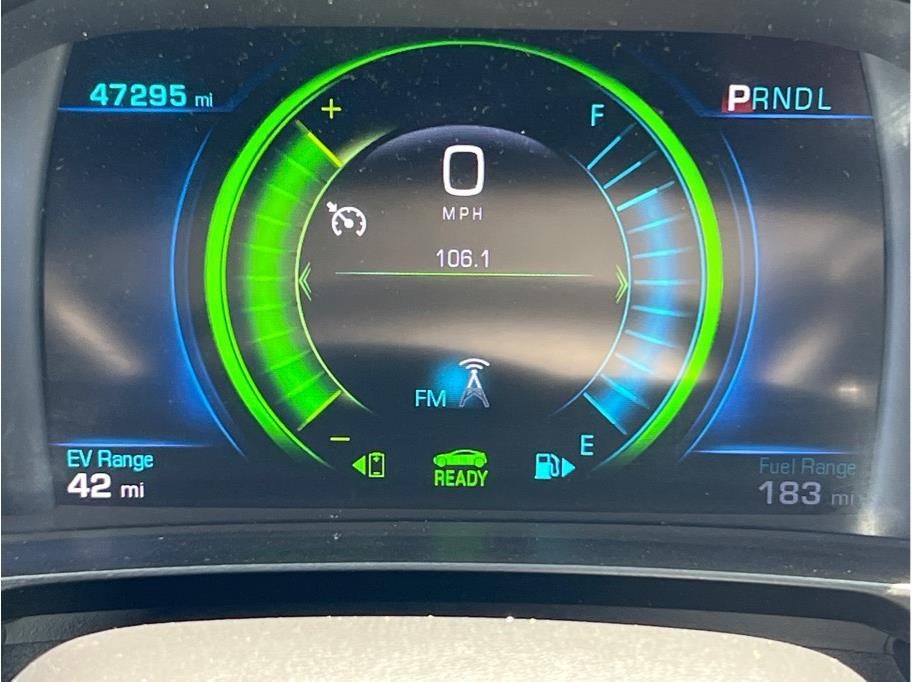

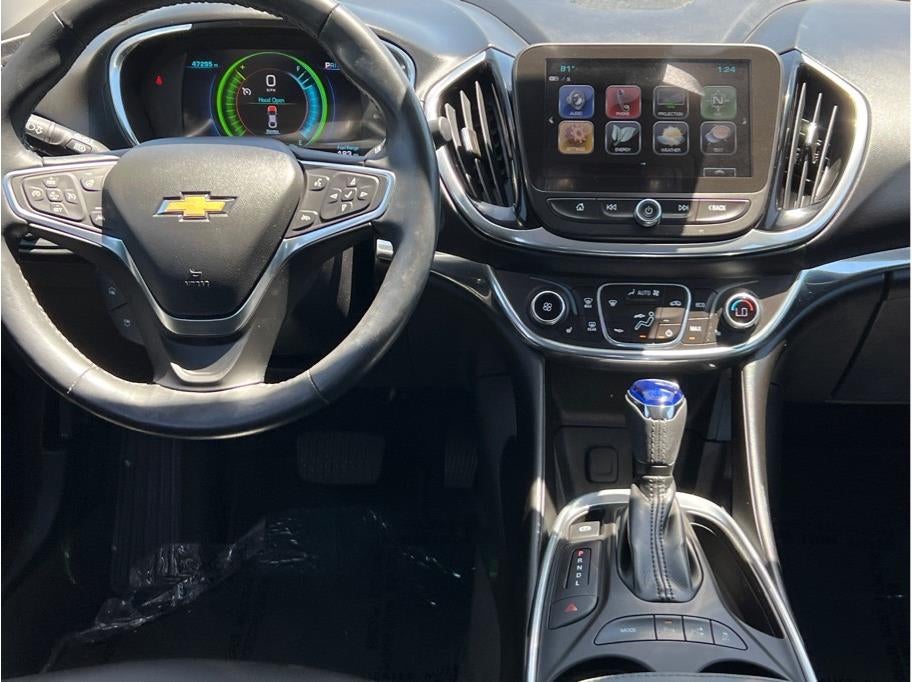

• Instrumentation, 8-inch color, digital reconfigurable LCD screen includes Driver Information Center, compass, trip/fuel information, vehicle information and vehicle messages

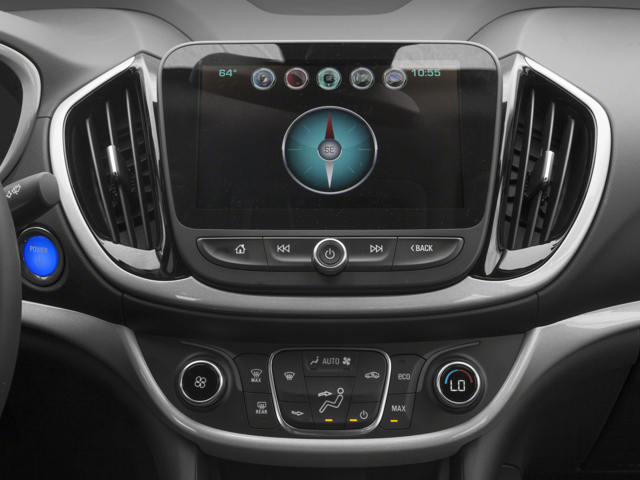

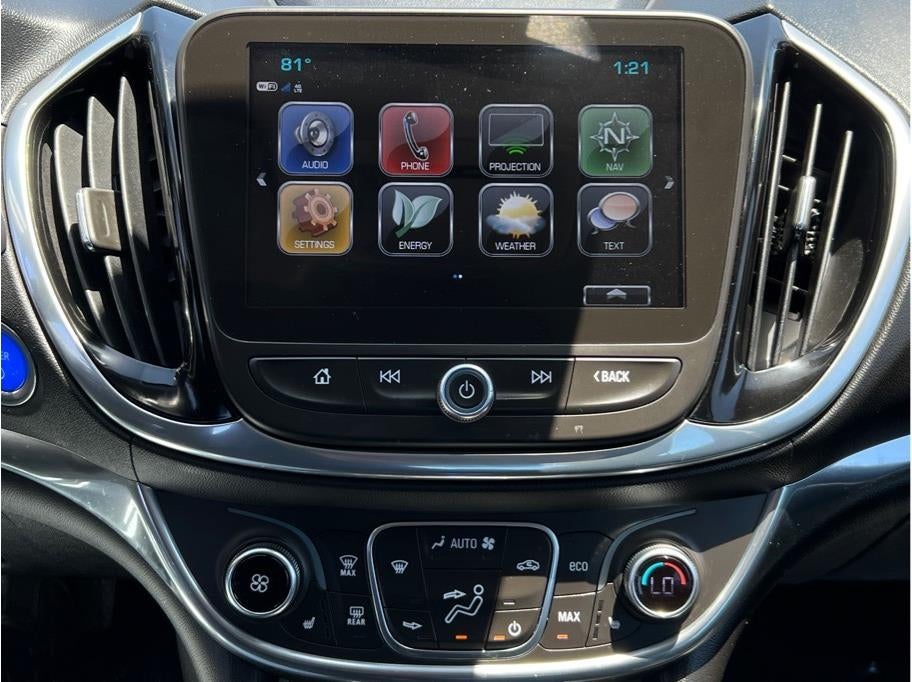

• Display, center, 8" diagonal LCD touch screen includes energy information screens with programmable charge times

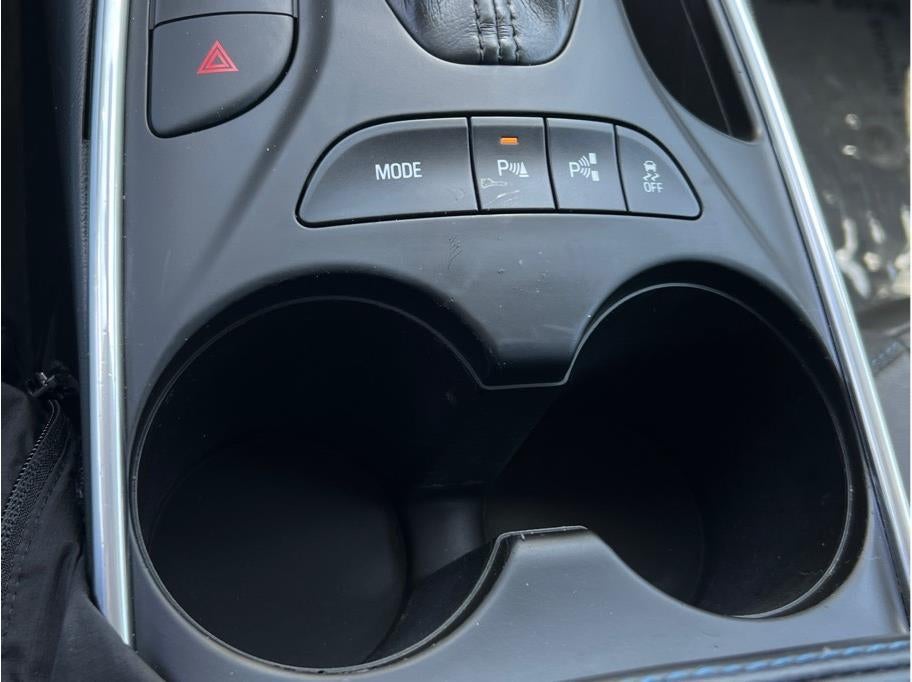

• Drive mode control switch, Normal, Sport, Mountain and Hold modes

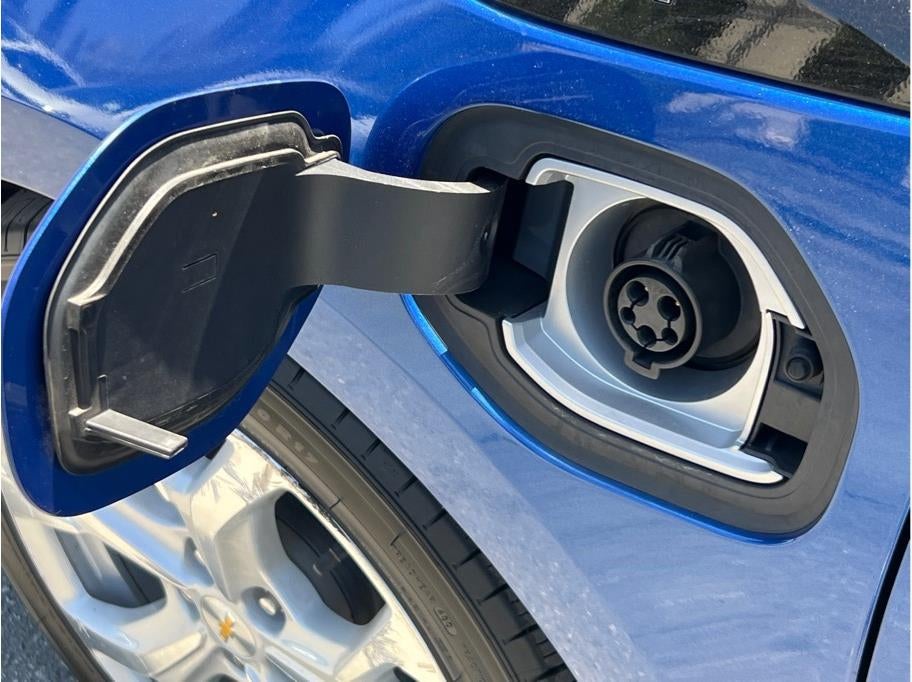

• Charge control, programmable time of day with charging status indicator light on instrument panel
• Charge control, location based, selectable GPS enabled with programmable "home" charging setting

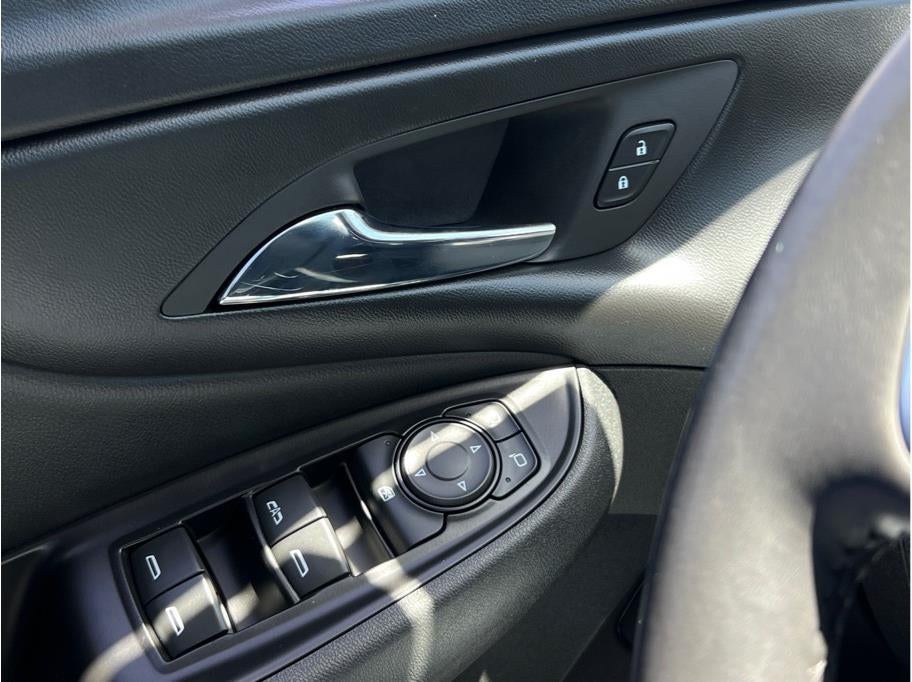

• Windows, power with Express-Down on all, driver Express-Up with anti-pinch override
• Door locks, power programmable with delayed locking feature and lockout protection
• Keyless Open and Start passive unlock and lock on all doors and liftgate; push-button start
• Remote Keyless Entry includes remote start, panic alarm and delayed charging override functions
• Remote vehicle starter system
• Cruise control, electronic with set and resume speed, steering wheel-mounted controls
• Theft-deterrent system, anti-theft alarm with immobilizer
• Remote panic alarm
• Air conditioning, single-zone automatic climate control
• Defogger, rear-window electric
• Glovebox, passenger-side
• Storage, front door panels, dedicated umbrella pocket and bottle holder
• Map pockets, driver and front passenger seatbacks
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors, covered, sliding
• Assist handles, 2, rear outboard with rear coat hooks
• Lighting, interior, ambient LED-based front reading lights, dome and incandescent cargo area lamp, ambient light pipes in front doors

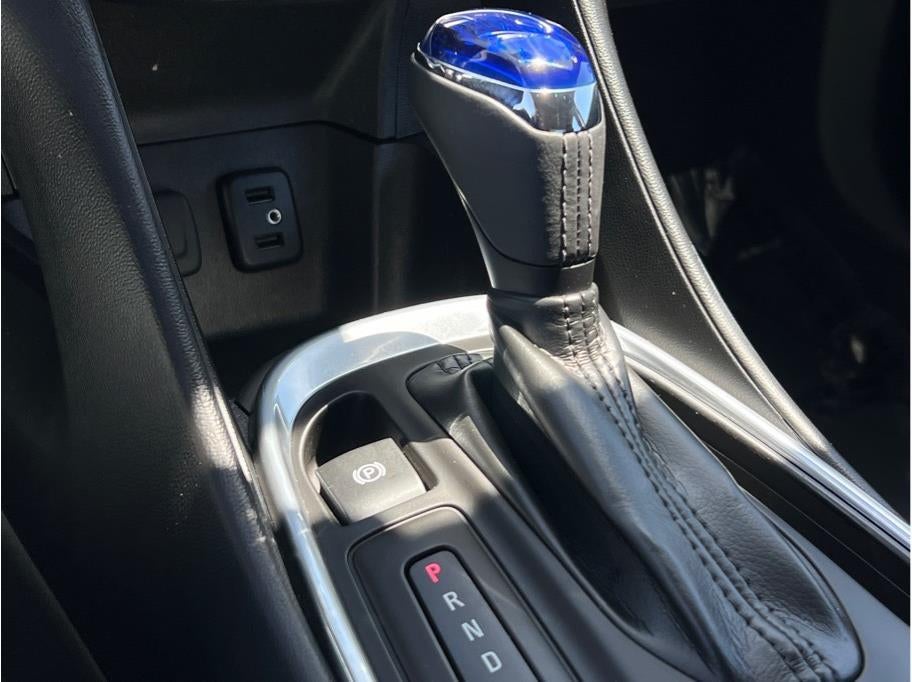

• Shift knob, leather-wrapped
• Storage, covered, dedicated for vehicle charging cord located in rear cargo area

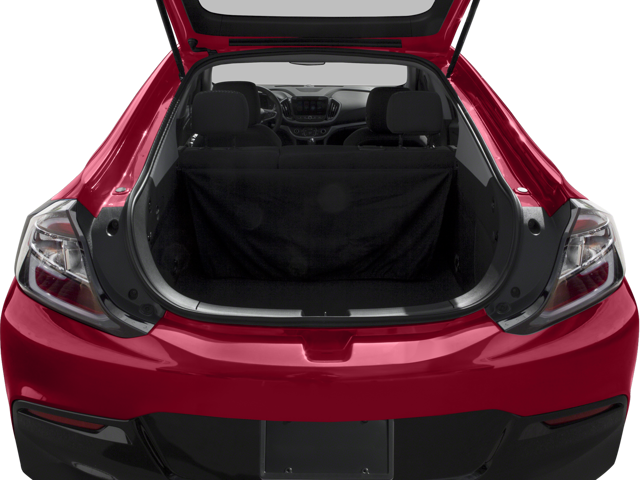

• Cargo cover

• StabiliTrak, stability control system with brake assist includes Traction Control
• Daytime Running Lamps, LED illumination
• Air bag, Passenger Sensing System sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, dual-stage frontal, driver and right-front passenger includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-front outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, knee, driver and front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable; EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more; EFFECTIVE WITH SALES STARTING 5/1/2018. (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Automatic Parking Assist includes front, rear, parallel and perpendicular parking assist

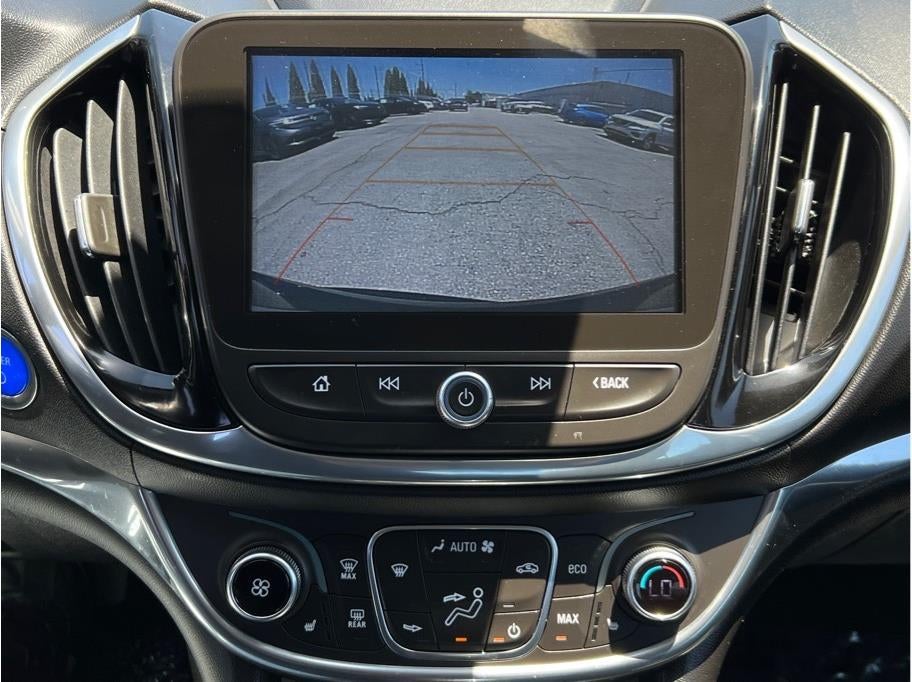

• Rear Vision Camera
• Pedestrian safety signal automatic audible signal during low speed driving
• Safety belts, 3-point, all seating positions includes front seat dual pretensioners
• Lockout switch, child, rear doors and windows, manual control
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Teen Driver Mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitor System

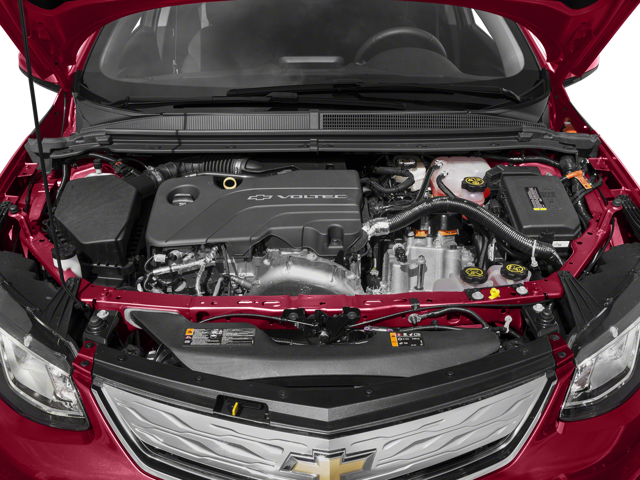

ENGINE, RANGE EXTENDER, 1.5L VARIABLE VALVE TIMING, DI, DOHC 4-CYLINDER

• (STD)

• 4-Cyl 1.5L Range Extender
• ABS (4-Wheel)
• Air Conditioning
• Alarm System
• Alloy Wheels
• AM/FM Radio w/MyLink
• Backup Camera
• Blind Zone Alert
• Bluetooth® Wireless
• Comfort Pkg
• Cruise Control
• Daytime Running Lights
• Dual Air Bags
• F&R Head Curtain Air Bags
• F&R Side Air Bags
• Heated Seats
• Keyless Entry
• Keyless Start
• Knee Air Bags
• Lane Keep Assist
• Leather
• LED Headlamps
• OnStar
• Park Assist
• Power Door Locks
• Power Liftgate Release
• Power Steering
• Power Windows
• Premium Sound
• Rear Spoiler
• SiriusXM Satellite
• StabiliTrak
• Tilt & Telescoping Wheel
• Traction Control

• Vehicle
• EPA Classification: Compact Cars
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 42
• EPA Fuel Economy Est - City (MPG): 43
• EPA Fuel Economy Est - Hwy (MPG): 42
• EPA MPG Equivalent - Combined: 106
• Estimated Battery Range (mi): 53
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 7.4
• Weight Information
• Base Curb Weight (lbs): 3543
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Compound Crank
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Brakes
• Brake Type: Regenerative
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 10.87 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 10.00 x - TBD -
• Tires
• Front Tire Order Code: 5GP
• Rear Tire Order Code: 5GP
• Front Tire Size: P215/50R17
• Rear Tire Size: P215/50R17
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Electric Pwr
• Steering Ratio (:1), Overall: 15.7
• Lock to Lock Turns (Steering): 3.0
• Turning Diameter - Curb to Curb (ft): 36.40
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 8.9
• Exterior Dimensions
• Wheelbase (in): 106.10
• Length, Overall (in): 180.40
• Width, Max w/o mirrors (in): 71.20
• Height, Overall (in): 56.4
• Track Width, Front (in): 60.60
• Track Width, Rear (in): 61.80
• Min Ground Clearance (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions

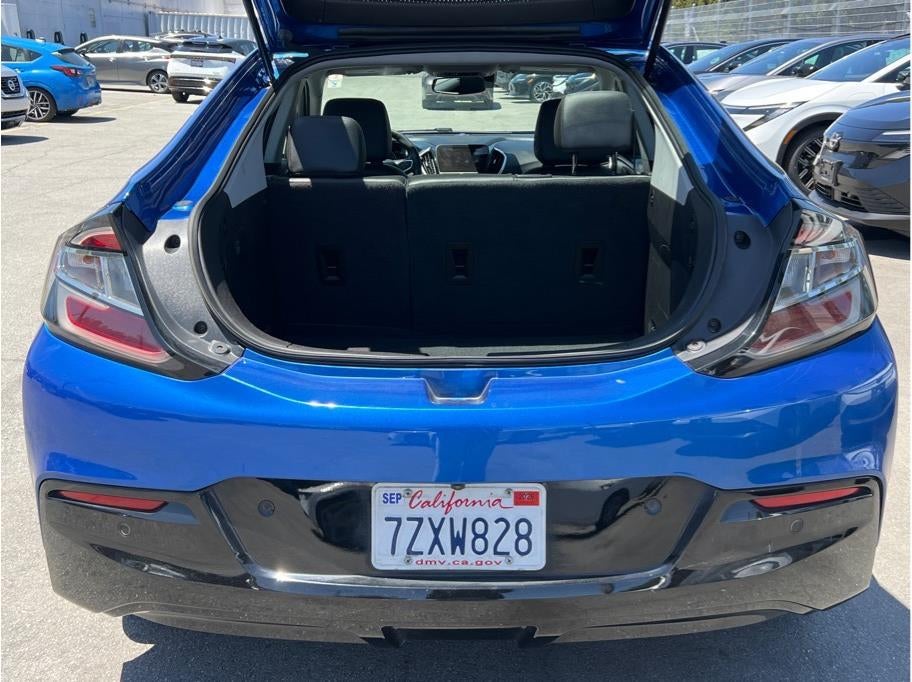

• Trunk Volume (ft³): 10.6
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 90.0
• Front Head Room (in): 37.80
• Front Leg Room (in): 42.10
• Front Shoulder Room (in): 56.50
• Front Hip Room (in): 53.70
• Second Head Room (in): 35.80
• Second Leg Room (in): 34.70
• Second Shoulder Room (in): 53.20
• Second Hip Room (in): 51.30
• Summary

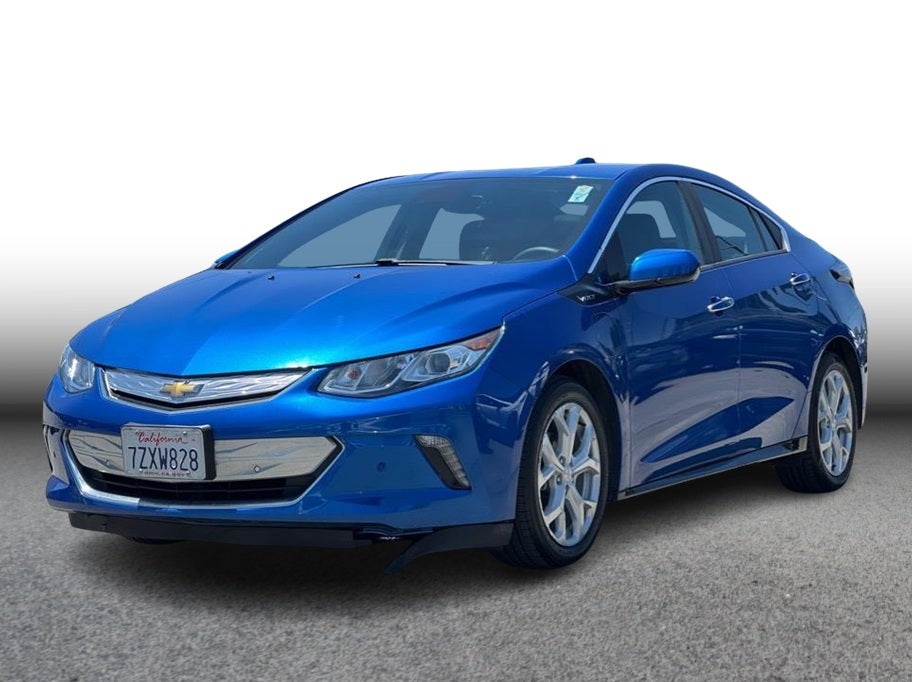

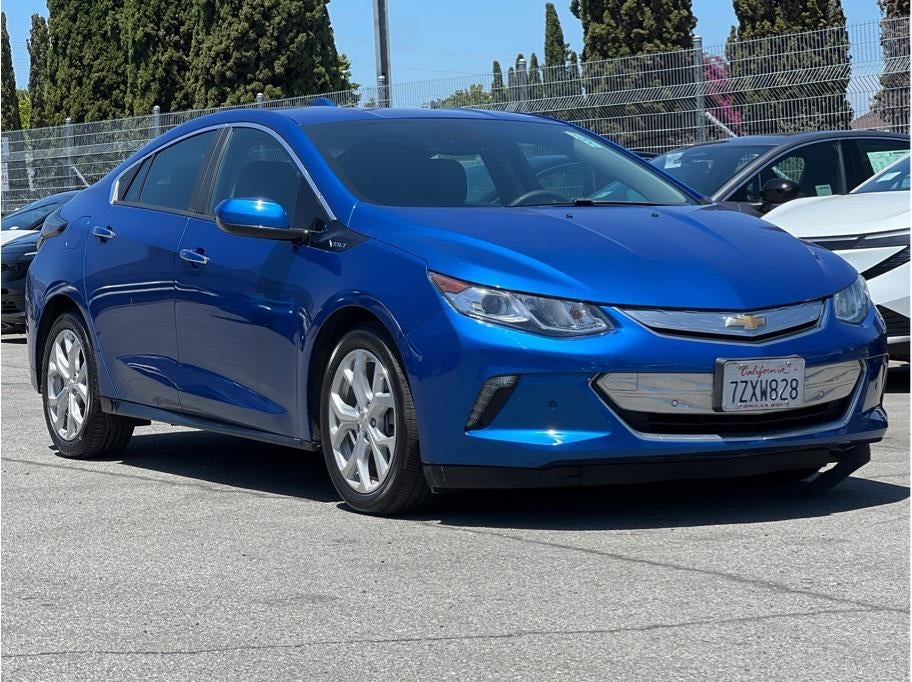

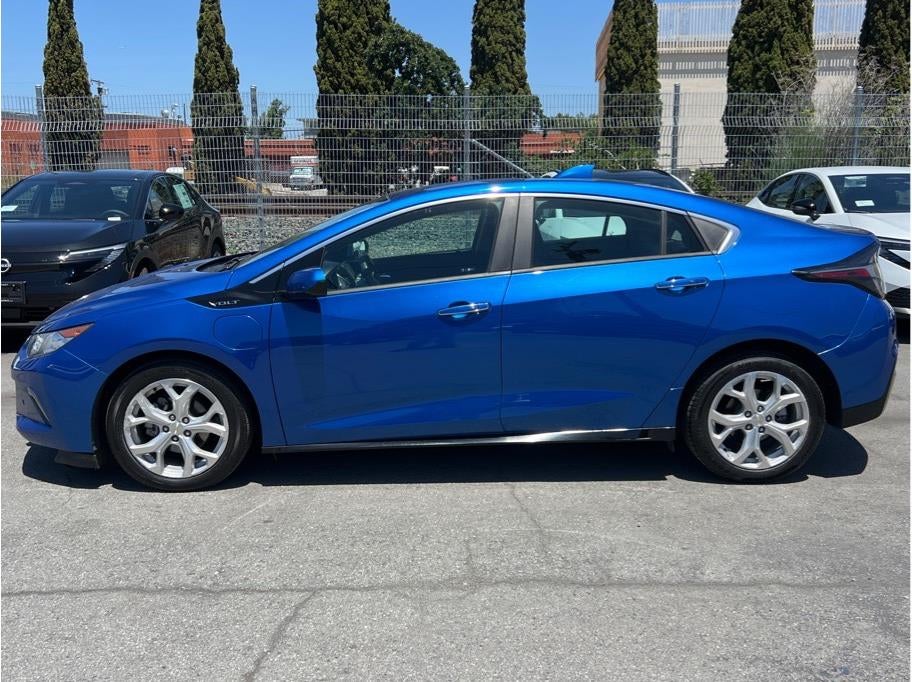

• Vehicle Name: Chevrolet Volt
• Body Style: Hatchback
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 1.3
